PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 0,1 %FS @ 0…50 °C
Interfaces: RS485
Special Characteristics: Optimised for H2
Product Description

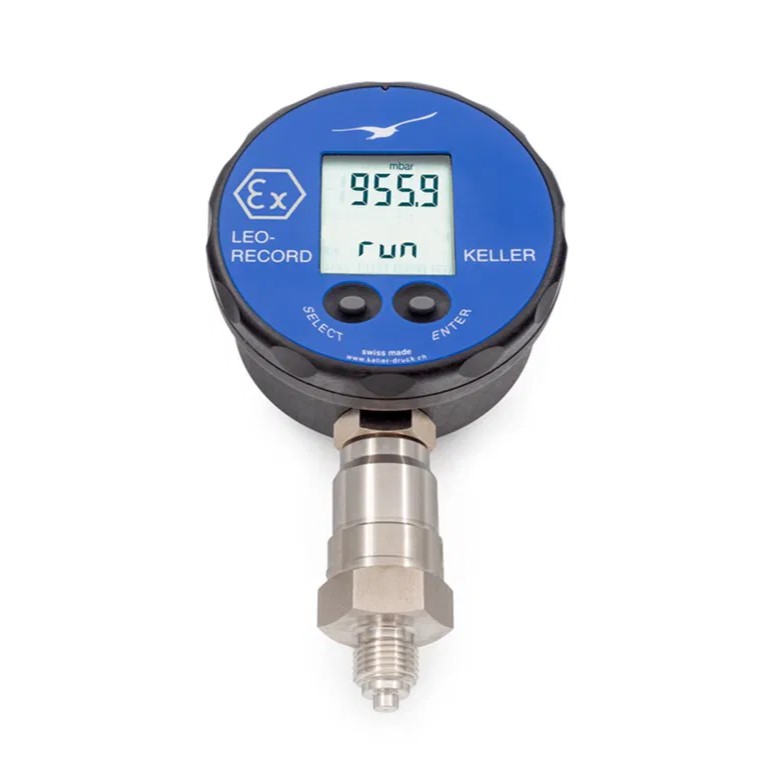

The highly accurate, digital pressure gauge LEO-Record-H2 complements the hydrogen portfolio with a display and storage device, which can record pressure and temperature over a longer period of time. Due to the increased nickel content in the stainless steel, the device has a low embrittlement rate, which ensures a long service life. Thanks to its gold-plated membrane, H2 diffusion is reduced to a minimum.
Via the RS485 interface, the pressure gauge can be easily connected to a computer to make configurations or read out the records. With its high accuracy and safety, the LEO-Record-H2 fulfils all requirements for measuring devices in the field of hydrogen.
Intrinsically safe – suitable for use in explosive atmospheres.
PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ±.0,1 %FS
Total Error Band: ± 0,2 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Peak recording
Display: 4-digit LCD display
Product Description

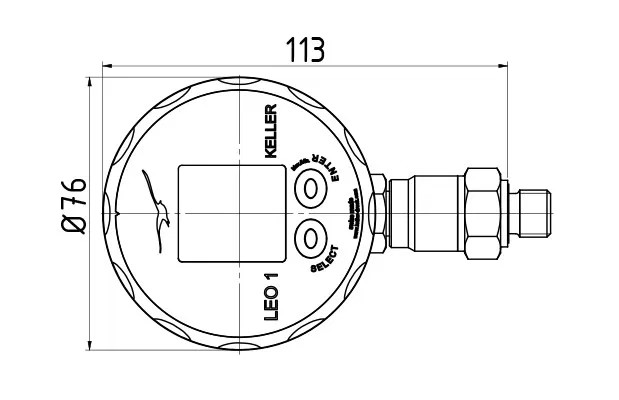

The LEO1-Ei digital manometers have a measuring interval of 1000 individual measurements per second, which allows them to record fast pressure peaks. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. Power is supplied by a conventional CR2430 coin cell battery (provided).
Intrinsically safe – suitable for use in explosive atmospheres.
PRODUCT DETAIL :
Pressure Ranges: 0…4 to 0…700 bar
Accuracy: ± 0,1 %FS
Total Error Band: ± 0,2 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Compact and precise
Display: 4-digit LCD display
Product Description

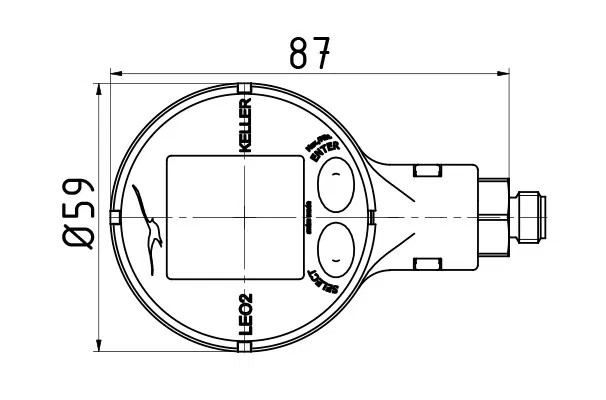

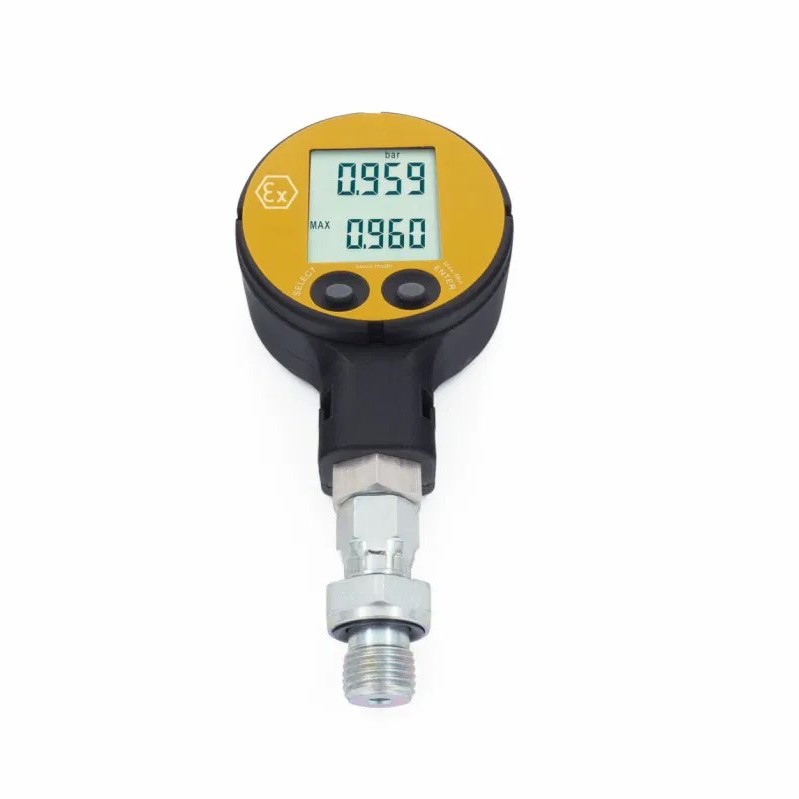

The compact LEO2-Ei digital manometers are budget-friendly and provide high accuracy. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The swivel adapter allows the device to be optimally positioned. Power is supplied by a conventional CR2430 coin cell battery (provided).
Intrinsically safe – suitable for use in explosive atmospheres.
PRODUCT DETAIL :
Pressure Ranges: -1…30 to 0…300 bar
Accuracy: ± 0,5 %FS
Total Error Band: ± 1,0 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Compact and economical
Display: 4-digit LCD display
Product Description

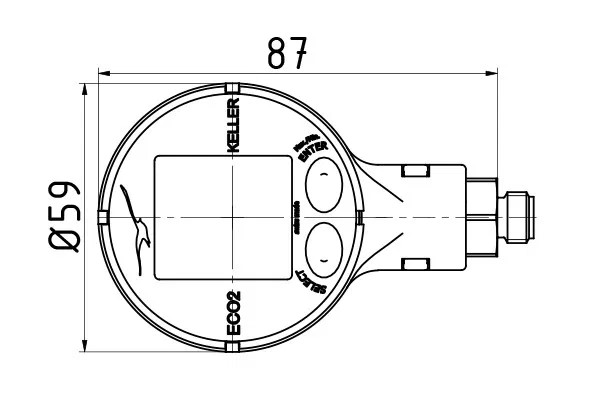

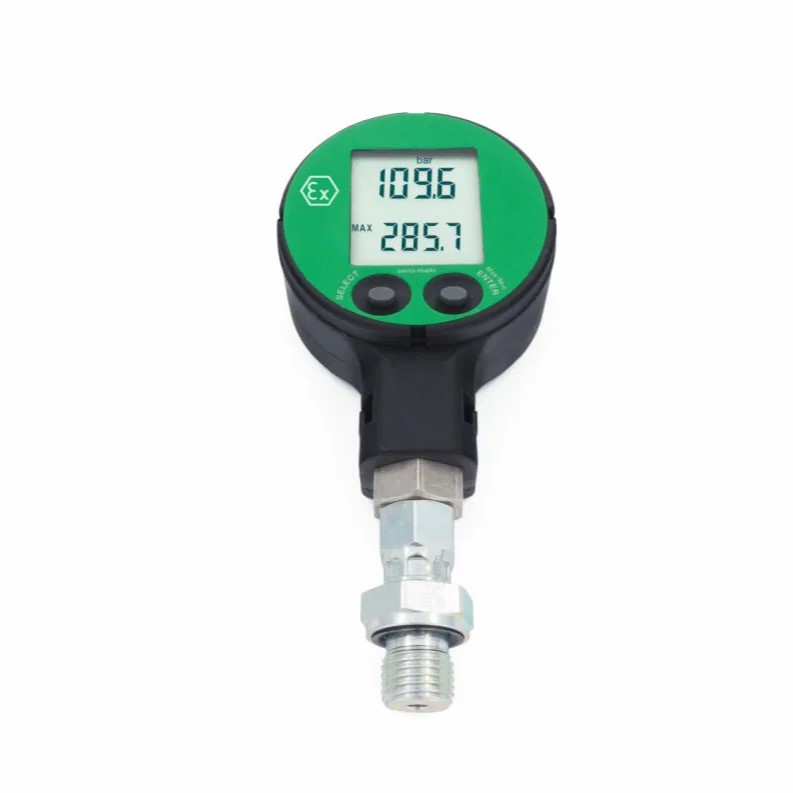

The compact ECO2-Ei digital manometers are budget-friendly and provide a good resolution. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The swivel adapter allows the device to be optimally positioned. Power is supplied by a conventional CR2430 coin cell battery (provided).
Intrinsically safe – suitable for use in explosive atmospheres.
PRODUCT DETAIL :
Pressure Ranges: -1…1 to 0…1000 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 0,05 %FS @ 0…50 °C
Interfaces: RS485
Special Characteristics: Precision of up to 0,01 %FS
Display: 5-digit LCD display
Product Description

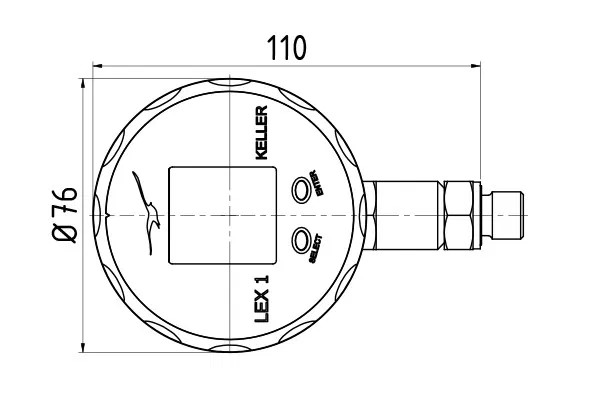

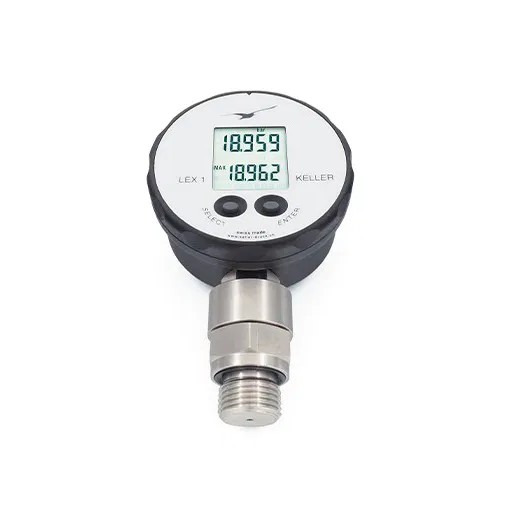

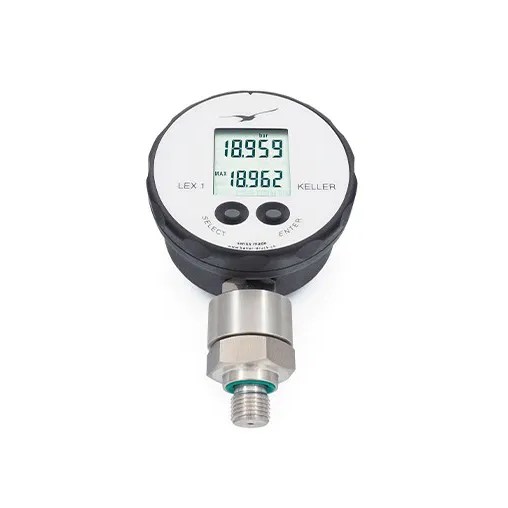

The high precision of the LEX1 digital manometers makes them ideally suited to calibration and test applications. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. Power is supplied by a conventional CR2430 coin cell battery (provided).
PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ± 0,1 %FS
Total Error Band: ± 0,2 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Peak recording
Display: 4½-digit LCD display

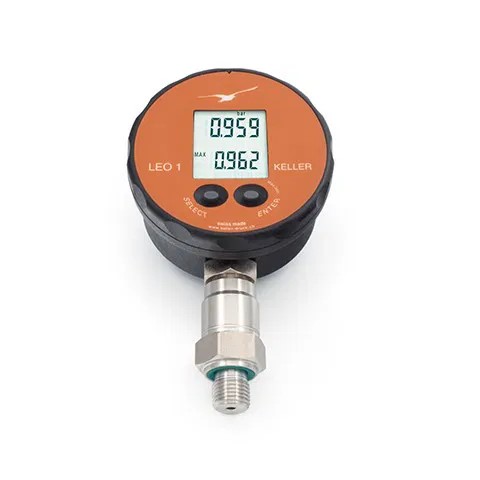

The LEO1 digital manometers have an optional measuring interval of up to 1000 individual measurements per second, which allows them to record fast pressure peaks. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. Power is supplied by a conventional CR2430 coin cell battery (provided).
PRODUCT DETAIL :
Pressure Ranges: 0…4 to 0…700 bar
Accuracy: ± 0,1 %FS
Total Error Band: ± 0,2 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Compact and precise
Display: 4½-digit LCD display
Product Description

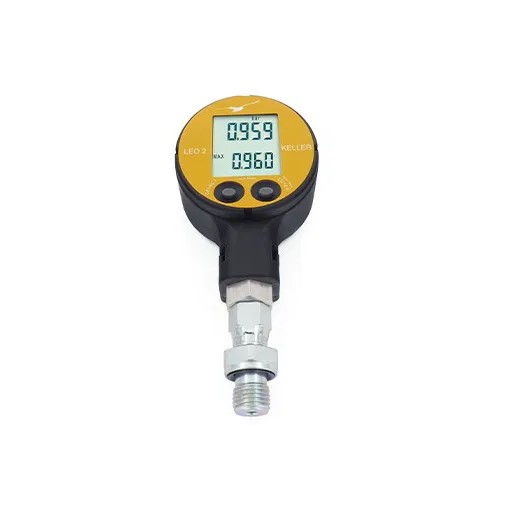

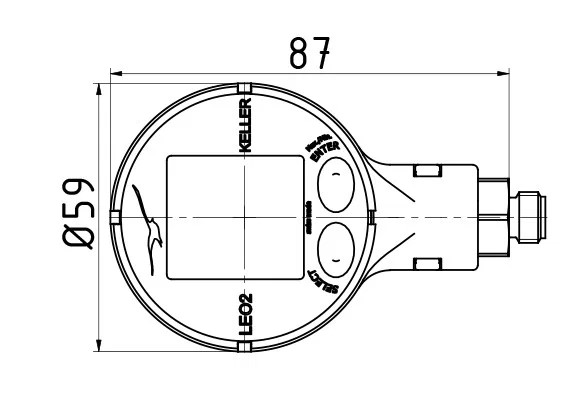

The compact LEO2 digital manometers are budget-friendly and provide high accuracy. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The swivel adapter allows the device to be optimally positioned. Power is supplied by a conventional CR2430 coin cell battery (provided).
PRODUCT DETAIL :
Pressure Ranges: 0…31 to 0…300 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 1,0 %FS @ 0…50 °C
Interfaces: None
Special Characteristics: Compact and economical
Display: 4½-digit LCD display
Product Description

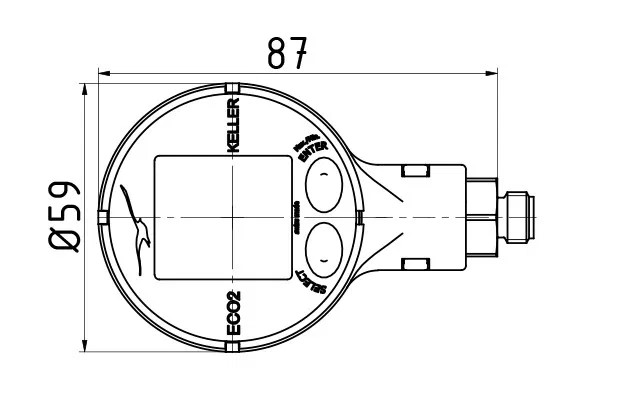

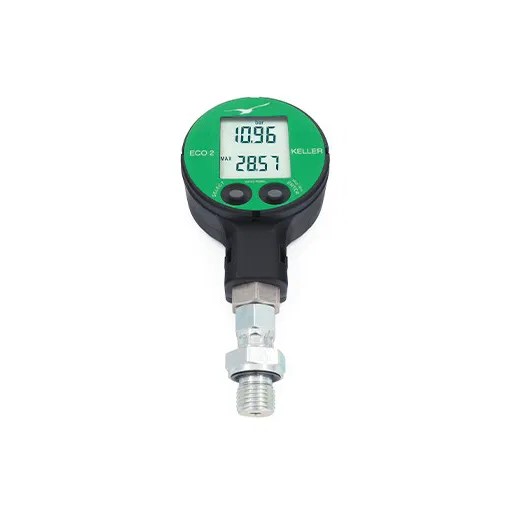

The compact ECO2 digital manometers are budget-friendly and provide a good resolution. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The swivel adapter allows the device to be optimally positioned. Power is supplied by a conventional CR2430 coin cell battery (provided).
PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 0,1 %FS @ 0…50 °C
Interfaces: RS485
Special Characteristics: Measured value recording
Display: 5-digit LCD display
Reading Capacity: 7’000 measuring points
Product Description

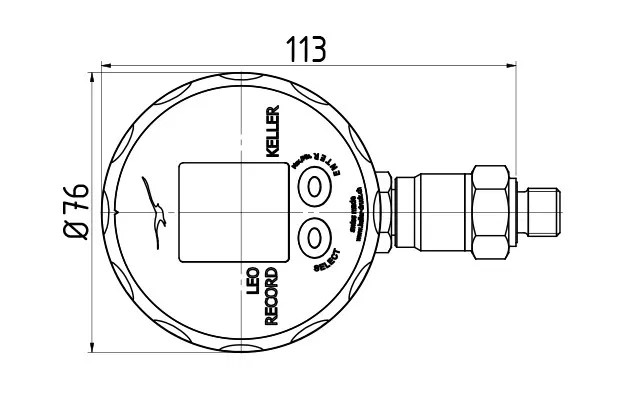

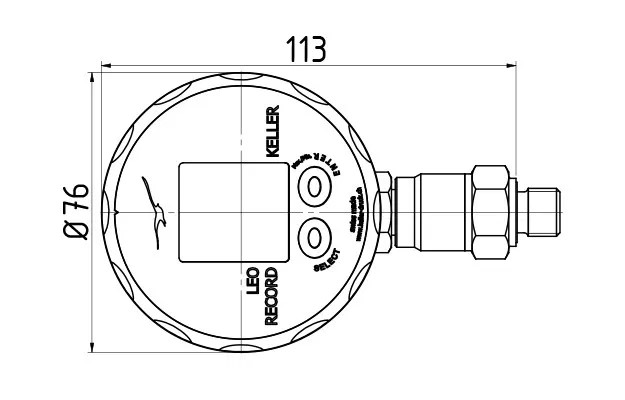

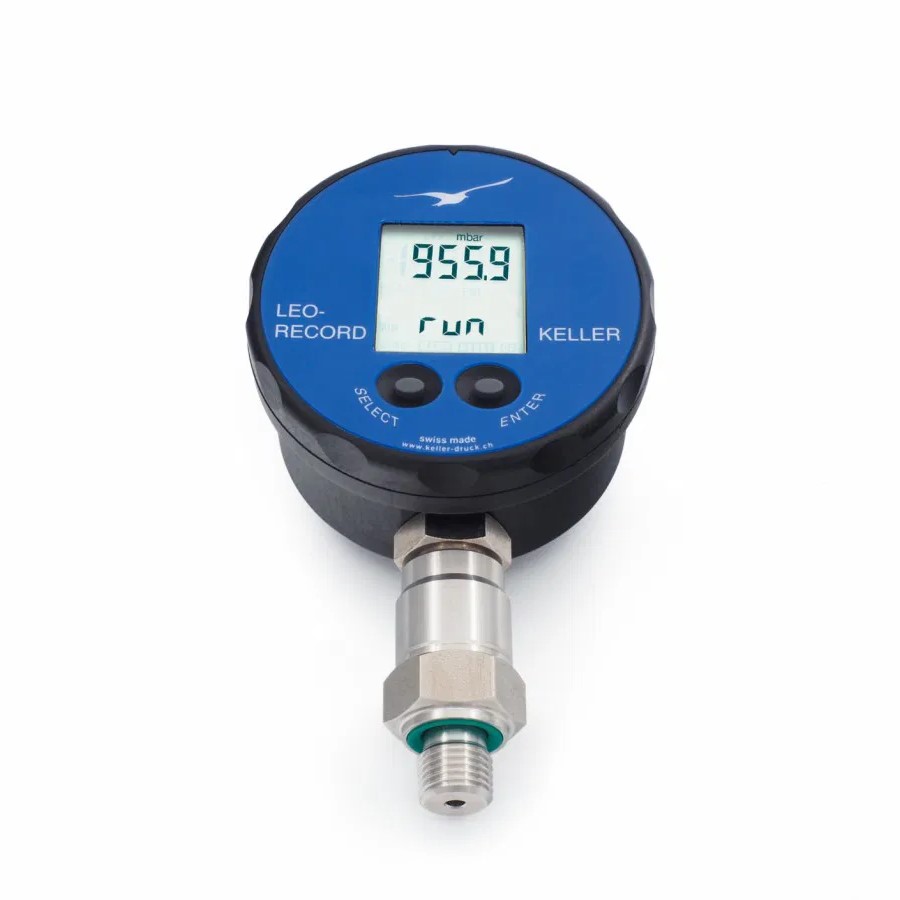

The high-accuracy LEO-Record digital manometers can record pressure and temperature autonomously for long periods thanks to their memory function. The data logger can be connected to a computer via the RS485 interface for configuration and for reading out the recorded data. The current pressure value can be displayed in a wide variety of units of pressure. Power is supplied by a high-quality 3,6 V lithium battery.
PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 0,1 %FS @ 0…50 °C
Interfaces: RS485
Special Characteristics: Optimised for H2
Product Description

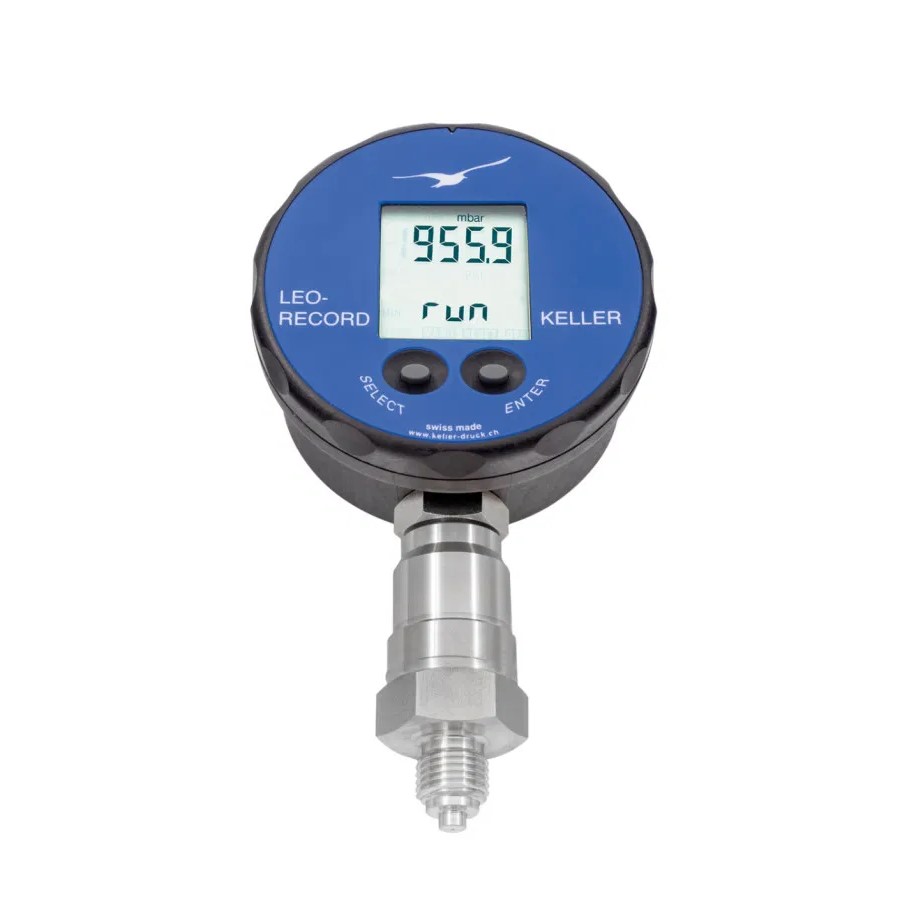

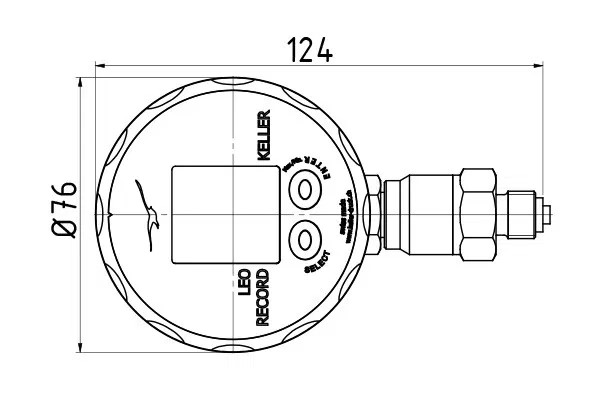

The highly accurate, digital pressure gauge LEO-Record-H2 complements the hydrogen portfolio with a display and storage device, which can record pressure and temperature over a longer period of time. Due to the increased nickel content in the stainless steel, the device has a low embrittlement rate, which ensures a long service life. Thanks to its gold-plated membrane, H2 diffusion is reduced to a minimum.
Via the RS485 interface, the pressure gauge can be easily connected to a computer to make configurations or read out the records. With its high accuracy and safety, the LEO-Record-H2 fulfils all requirements for measuring devices in the field of hydrogen.
PRODUCT DETAIL :
Pressure Ranges: -1…1 to 0…1000 bar
Accuracy: ± 0,05 %FS
Total Error Band: ± 0,1 %FS @ 0…50 °C
Interfaces: USB
Special Characteristics: All-rounder
Display: 5-digit LCD display
Reading Capacity: 56’000 measuring points
Product Description
The LEO5 digital pressure gauges combine a range of functions from other KELLER Pressure gauges in a water-tight stainless steel housing. They can detect pressure peaks with a measurement interval of ≥ 1 kHz and record all measurements. Current measured values and saved data can be read out via the USB connection. The pressure values can be shown on the extra-large display in a wide range of units of pressure, which are either pre-programmed or configured by the user.
PRODUCT DETAIL :
Pressure Ranges: -1…3 to 0…1000 bar
Accuracy: ± 0,1 %FS
Total Error Band: ± 0,2 %FS @ 0…50 °C
Interfaces: RS485, 4…20 mA
Special Characteristics: 4…20 mA output
Display: 4-digit LCD display
Product Description

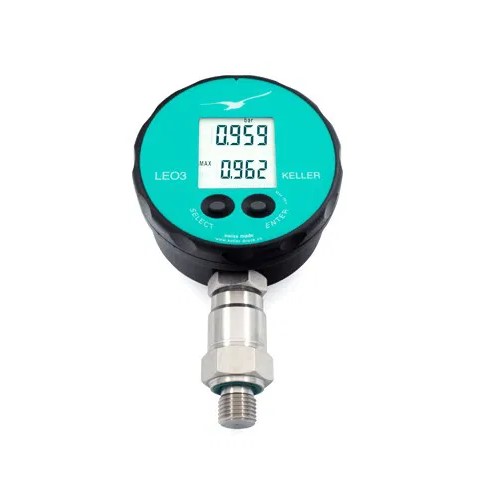

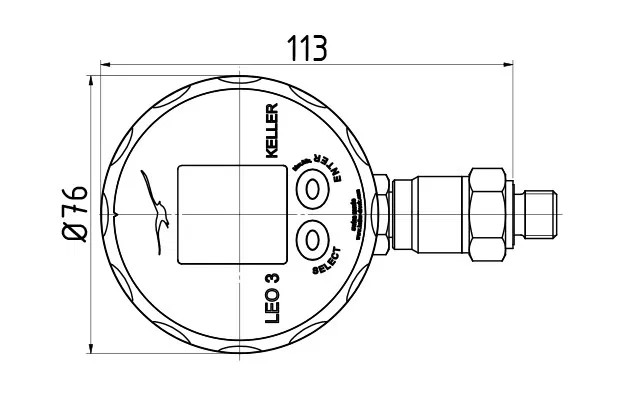

The LEO3 digital manometers also output the pressure values as an analog signal for display purposes and have an RS485 interface for integration in bus systems and communication with computers. The current 4…20 mA measured value is shown on the display at the same time as the pressure value. The minimum or maximum value since the last reset can also be displayed at the touch of a button. Power is supplied directly via the 4…20 mA circuit.
